Chapter 13 - Fundamentals of Numerical Computation

Functions¶

Create a tensor-product grid

tensorgrid.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
def tensorgrid(x, y):
    """
    tensorgrid(x, y)

    Create a tensor grid for a rectangle from its 1d projections x and y.
    Returns a function to reshape a 2d array to a vector, a function to reshape
    a vector into a 2d array, a function to evaluate a function on the grid,
    two arrays to give the grid coordinates, and a boolean array to identify
    the boundary points.
    """
    m, n = len(x) - 1, len(y) - 1
    vec = lambda U: U.T.flatten()
    unvec = lambda u: np.reshape(u, (n+1, m+1)).T
    mtx = lambda h: np.array([[h(xi ,yj) for yj in y] for xi in x])
    X = mtx(lambda x, y: x)
    Y = mtx(lambda x, y: y)

    # Identify boundary points.
    is_boundary = np.tile(True, (m+1, n+1))
    is_boundary[1:-1, 1:-1] = False

    return mtx, X, Y, vec, unvec, is_boundary

Solution of Poisson’s equation by finite differences

poissonfd.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
def poissonfd(f, g, m, xspan, n, yspan):
    """
    poissonfd(f, g, m, xspan, n, yspan)

    Solve Poisson's equation on a rectangle by finite differences. Function f is the
    forcing function and function g gives the  Dirichlet boundary condition. The rectangle
    is the tensor product of intervals xspan and yspan,  and the discretization uses
    m+1 and n+1 points in the two coordinates.

    Return matrices of the solution values, and the coordinate functions, on the grid.
    """
    # Discretize the domain.
    x, Dx, Dxx = diffmat2(m, xspan)
    y, Dy, Dyy = diffmat2(n, yspan)
    mtx, X, Y, vec, unvec, is_boundary = tensorgrid(x, y)
    N = (m+1) * (n+1)    # total number of unknowns

    # Form the collocated PDE as a linear system.
    Dxx = sp.lil_matrix(Dxx)
    Dyy = sp.lil_matrix(Dyy)
    A = sp.kron(sp.eye(n+1, format="lil"), Dxx) + sp.kron(Dyy, sp.eye(m+1, format="lil"))
    b = vec(mtx(f))

    # Apply Dirichlet condition.
    idx = vec(is_boundary)
    scale = np.max(abs(A[n+1, :]))
    I = sp.eye(N, format="lil")
    A[idx, :] = scale * I[idx, :]         # Dirichet assignment
    X_bd, Y_bd = vec(X)[idx], vec(Y)[idx]
    b[idx] = scale * g(X_bd, Y_bd)    # assigned values

    # Solve the linear sytem and reshape the output.
    u = scipy.sparse.linalg.spsolve(A.tocsr(), b)
    U = unvec(u)
    return U, X, Y

Solution of elliptic PDE by Chebyshev collocation

elliptic.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
def elliptic(f, g, m, xspan, n, yspan):
    """
    newtonpde(f, g, m, xspan, n, yspan)

    Newton's method with finite differences to solve the PDE f(u,x,y,disc)=0 on the
    rectangle xspan \times yspan, subject to g(x,y)=0 on the boundary. Use m+1
    points in x by n+1 points in y.

    Return matrices of the solution values, and the coordinate functions, on the grid.
    """
    from scipy.sparse.linalg import spsolve
    x, Dx, Dxx = diffcheb(m, xspan)
    y, Dy, Dyy = diffcheb(n, yspan)
    mtx, X, Y, vec, unvec, is_boundary = tensorgrid(x, y)

    # Evaluate the boundary condition at the boundary nodes.
    idx = vec(is_boundary)
    X_bd, Y_bd = vec(X)[idx], vec(Y)[idx]
    g_bd = g(X_bd, Y_bd)

    # Evaluate the PDE+BC residual.
    def residual(u):
        U = unvec(u)
        R = f(X, Y, U, Dx @ U, Dxx @ U, U @ Dy.T, U @ Dyy.T)    # PDE
        r = vec(R)
        r[idx] = u[idx] - g_bd                                  # BC
        return r

    # Solve the equation.
    u = levenberg(residual, vec(np.zeros(X.shape)))[-1]
    U = unvec(u)

    def evaluate(xi, eta):
        v = [chebinterp(y, u, eta) for u in U]
        return chebinterp(x, v, xi)

    return np.vectorize(evaluate)

Examples¶

13.1 Tensor-product discretizations¶

Example 13.1.2

Here is the grid from Example 13.1.1.

m = 4
x = linspace(0, 2, m+1)
n = 2
y = linspace(1, 3, n+1)

For a given $f(x,y)$ we can find $\operatorname{mtx}(f)$ by using a comprehension syntax.

f = lambda x, y: cos(pi * x * y - y)
F = array( [ [f(xi, yj) for yj in y] for xi in x ] )
print(F)

[[ 0.54030231 -0.41614684 -0.9899925 ]
 [ 0.84147098  0.41614684 -0.14112001]
 [-0.54030231 -0.41614684  0.9899925 ]
 [-0.84147098  0.41614684  0.14112001]
 [ 0.54030231 -0.41614684 -0.9899925 ]]

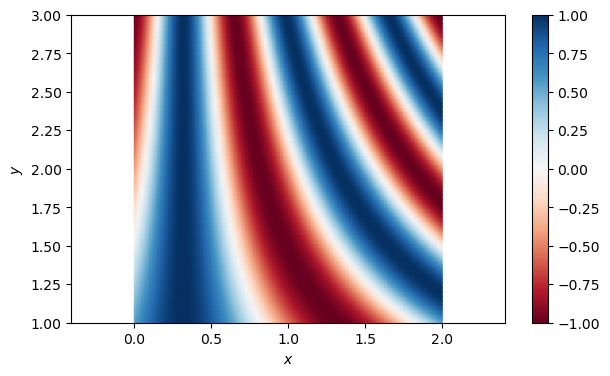

We can make a nice plot of the function by first choosing a much finer grid. However, the contour and surface plotting functions expect the transpose of mtx( $f$ ).

m, n = 80, 70
x = linspace(0, 2, m+1)
y = linspace(1, 3, n+1)
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)
F = mtx(f)

pcolormesh(X.T, Y.T, F.T, cmap="RdBu", vmin=-1, vmax=1, shading="gouraud")
axis("equal"),  colorbar()
xlabel("$x$"),  ylabel("$y$");

Example 13.1.3

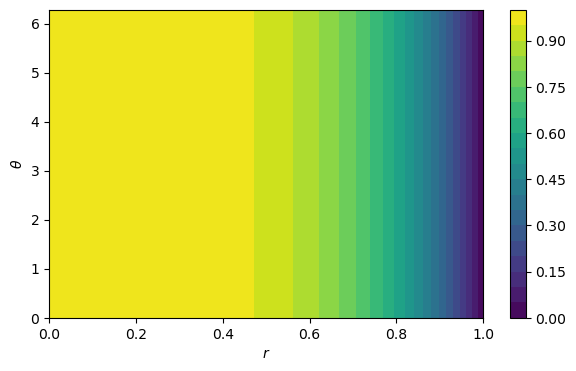

For a function given in polar form, such as $f(r,\theta)=1-r^4$ , construction of a function over the unit disk is straightforward using a grid in $(r,\theta)$ space.

r = linspace(0, 1, 41)
theta = linspace(0, 2*pi, 121)
mtx, R, Theta, _, _, _ = FNC.tensorgrid(r, theta)

F = mtx(lambda r, theta: 1 - r**4)

contourf(R.T, Theta.T, F.T, levels=20)
colorbar()
xlabel("$r$"),  ylabel("$\\theta$");

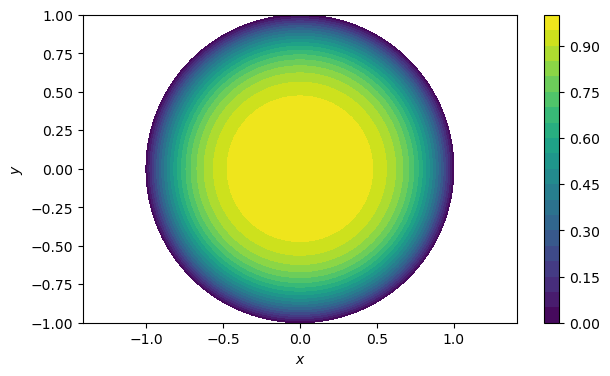

Of course, we are used to seeing such plots over the $(x,y)$ plane, not the $(r,\theta)$ plane. For this we create matrices for the coordinate functions $x$ and $y$ .

X, Y = R * cos(Theta), R * sin(Theta)
contourf(X.T, Y.T, F.T, levels=20)
colorbar(),  axis("equal")
xlabel("$x$"),  ylabel("$y$");

In such functions the values along the line $r=0$ must be identical, and the values on the line $\theta=0$ should be identical to those on $\theta=2\pi$ . Otherwise the interpretation of the domain as the unit disk is nonsensical. If the function is defined in terms of $x$ and $y$ , then those can be defined in terms of $r$ and θ using (13.1.5).

Example 13.1.4

We define a function and, for reference, its two exact partial derivatives.

u = lambda x, y: sin(pi * x * y - y)
du_dx = lambda x, y: pi * y * cos(pi * x * y - y)
du_dy = lambda x, y: (pi * x - 1) * cos(pi * x * y - y)

We will use an equispaced grid and second-order finite differences as implemented by diffmat2. First, we have a look at a plots of the exact partial derivatives.

m, n = 80, 70
x, Dx, Dxx = FNC.diffmat2(m, [0, 2])
y, Dy, Dyy = FNC.diffmat2(n, [1, 3])
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)

U = mtx(u)
dU_dX = mtx(du_dx)
dU_dY = mtx(du_dy)

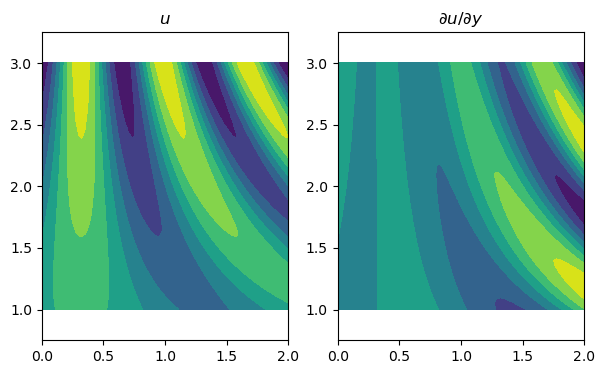

subplot(1, 2, 1)
contourf(X, Y, dU_dX)
title("$u$"),  axis("equal")
subplot(1, 2, 2)
contourf(X, Y, dU_dY)
title("$\\partial u/\\partial y$"),  axis("equal");

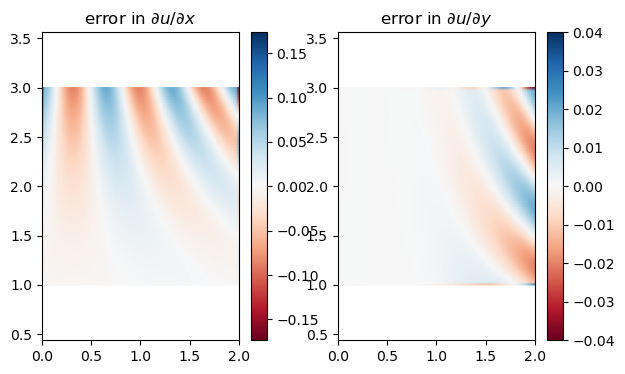

Now we compare the exact partial derivatives with their finite-difference approximations. Since these are signed errors, we use a colormap that is symmetric around zero.

subplot(1, 2, 1)
err_x = Dx @ U - dU_dX
M = max(abs(err_x))
pcolormesh(X, Y, err_x, shading="gouraud", cmap="RdBu", vmin=-M, vmax=M)
colorbar()
title("error in $\\partial u/\\partial x$"),  axis("equal")

subplot(1, 2, 2)
err_y = U @ Dy.T - dU_dY
M = max(abs(err_y))
pcolormesh(X, Y, err_y, shading="gouraud", cmap="RdBu", vmin=-M, vmax=M)
colorbar()
title("error in $\\partial u/\\partial y$"),  axis("equal");

Not surprisingly, the errors are largest where the derivatives themselves are largest.

13.2 Two-dimensional diffusion and advection¶

Example 13.2.1

m, n = 4, 3
x = linspace(0, 2, m+1)
y = linspace(-3, 0, n+1)

f = lambda x, y: cos(0.75 * pi * x * y - 0.5 * pi * y)
mtx, X, Y, vec, unvec, _ = FNC.tensorgrid(x, y)
F = mtx(f)
print(f"function on a {m}x{n} grid:")
with printoptions(precision=4, suppress=True):
    print(F)

print("vec(F):")
with printoptions(precision=4, suppress=True):
    print(vec(F))

function on a 4x3 grid:
[[-0.     -1.      0.      1.    ]
 [ 0.3827  0.7071  0.9239  1.    ]
 [-0.7071  0.      0.7071  1.    ]
 [ 0.9239 -0.7071 -0.3827  1.    ]
 [-1.      1.     -1.      1.    ]]
vec(F):
[-0.      0.3827 -0.7071  0.9239 -1.     -1.      0.7071  0.     -0.7071
  1.      0.      0.9239  0.7071 -0.3827 -1.      1.      1.      1.
  1.      1.    ]

The unvec operation is the inverse of vec.

print("unvec(vec(F)):")
with printoptions(precision=4, suppress=True):
    print(unvec(vec(F)))

unvec(vec(F)):
[[-0.     -1.      0.      1.    ]
 [ 0.3827  0.7071  0.9239  1.    ]
 [-0.7071  0.      0.7071  1.    ]
 [ 0.9239 -0.7071 -0.3827  1.    ]
 [-1.      1.     -1.      1.    ]]

Example 13.2.2

We start by defining the discretization of the rectangle.

m, n = 60, 40
x, Dx, Dxx = FNC.diffper(m, [-1, 1])
y, Dy, Dyy = FNC.diffper(n, [-1, 1])
mtx, X, Y, vec, unvec, _ = FNC.tensorgrid(x, y)

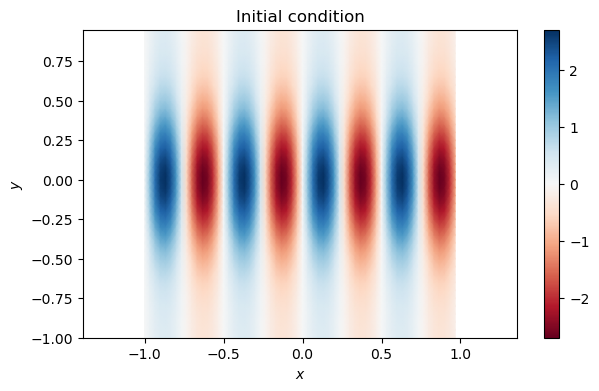

Here is the initial condition, evaluated on the grid.

u_init = lambda x, y: sin(4 * pi * x) * exp(cos(pi * y))
U0 = mtx(u_init)
mx = max(abs(U0))
pcolormesh(X, Y, U0, vmin=-mx, vmax=mx, cmap="RdBu", shading="gouraud")
axis("equal"),  colorbar()
xlabel("$x$"),  ylabel("$y$")
title("Initial condition");

The following function computes the time derivative for the unknowns, which have a vector shape. The actual calculations, however, take place using the matrix shape.

alpha = 0.1
def du_dt(t, u):
    U = unvec(u)
    Uyy = Dxx @ U
    Uxx = U @ Dyy.T
    dU_dt = alpha * (Uxx + Uyy)  # PDE
    return vec(dU_dt)

Since this problem is parabolic, a stiff time integrator is appropriate.

from scipy.integrate import solve_ivp
sol = solve_ivp(du_dt, (0, 0.2), vec(U0), method="BDF", dense_output=True)
U = lambda t: unvec(sol.sol(t))

We can use the function U defined above to get the solution at any time. Its output is a matrix of values on the grid.

pcolormesh(X.T, Y.T, U(0.02).T,
    vmin=-mx, vmax=mx, cmap="RdBu", shading="gouraud")
axis("equal"),  colorbar()
xlabel("$x$"),  ylabel("$y$")
title("Heat equation, t=0.02");

An animation shows convergence toward a uniform value.

from matplotlib import animation
fig, ax = subplots()
obj = ax.pcolormesh(X, Y, U(0), vmin=-mx, vmax=mx, cmap="RdBu", shading="gouraud")
time_text = ax.text(0.05, 0.9, '', transform=ax.transAxes)
ax.set_xlabel("$x$"),  ax.set_ylabel("$y$")
ax.set_aspect("equal")
ax.set_title("Heat equation on a periodic domain")
def snapshot(t):
    global obj
    obj.remove()
    obj = ax.pcolormesh(X, Y, U(t), vmin=-mx, vmax=mx, cmap="RdBu", shading="gouraud")
    time_text.set_text(f"t = {t:.2f}")

anim = animation.FuncAnimation(fig, snapshot, frames=linspace(0, 0.2, 41))
anim.save("figures/heat-2d.mp4", fps=30)
close()

Example 13.2.3

The first step is to define a discretization of the domain.

m, n = 50, 36
x, Dx, Dxx = FNC.diffcheb(m, [-1, 1])
y, Dy, Dyy = FNC.diffcheb(n, [-1, 1])
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)
u_init = lambda x, y: (1 + y) * (1 - x)**4 * (1 + x)**2 * (1 - y**4)

We define functions extend and chop to deal with the Dirichlet boundary conditions.

def chop(U):
    return U[1:-1, 1:-1]

def extend(W):
    U = zeros((m+1, n+1))
    U[1:-1, 1:-1] = W
    return U

Now we define the pack and unpack functions, using another call to Algorithm 13.2.1 to get reshaping functions for the interior points.

_, _, _, vec, unvec, _ = FNC.tensorgrid(x[1:-1], y[1:-1])
pack = lambda U: vec(chop(U))          # restrict to interior, then vectorize
unpack = lambda w: extend(unvec(w))    # reshape, then extend to boundary

Now we can define and solve the IVP using a stiff solver.

ep = 0.05
def dw_dt(t, w):
    U = unpack(w)
    Uyy = Dxx @ U
    Uxx = U @ Dyy.T
    dU_dt = 1 - Dx @ U + ep * (Uxx + Uyy)
    return pack(dU_dt)

U0 = mtx(u_init)
sol = solve_ivp(dw_dt, (0, 2), pack(U0), method="BDF", dense_output=True)

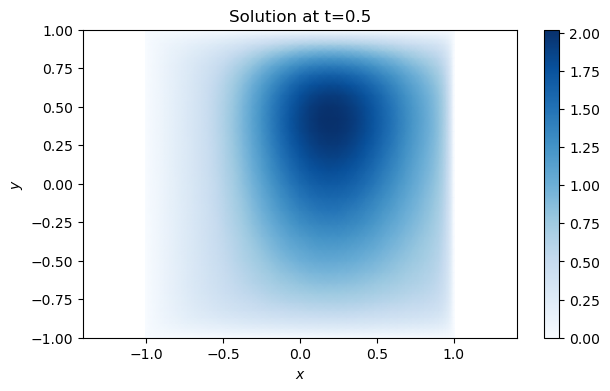

When we evaluate the solution at a particular value of $t$ , we get a vector of the interior grid values. The unpack converts this to a complete matrix of grid values.

U = lambda t: unpack(sol.sol(t))    # matrix-valued function of time

pcolormesh(X.T, Y.T, U(0.5).T, cmap="Blues", shading="gouraud")
colorbar()
xlabel("$x$"),  ylabel("$y$")
axis("equal"),  title("Solution at t=0.5");

mx = max([max(U(t)) for t in linspace(0, 2, 21)])
fig, ax = subplots()
obj = ax.pcolormesh(X.T, Y.T, U(0).T, vmin=0, vmax=2, cmap="Blues", shading="gouraud")
time_text = ax.text(0.05, 0.9, '', transform=ax.transAxes)
ax.set_xlabel("$x$"),  ax.set_ylabel("$y$")
ax.set_aspect("equal")
ax.set_title("Advection-diffusion in 2d")
def snapshot(t):
    global obj
    obj.remove()
    obj = ax.pcolormesh(X.T, Y.T, U(t).T, vmin=0, vmax=mx, cmap="Blues", shading="gouraud")
    time_text.set_text(f"t = {t:.2f}")

anim = animation.FuncAnimation(fig, snapshot, frames=linspace(0, 2, 81))
anim.save("figures/advdiff-2d.mp4", fps=30)
close()

Example 13.2.4

We start with the discretization and initial condition.

m, n = 40, 42
x, Dx, Dxx = FNC.diffcheb(m, [-2, 2])
y, Dy, Dyy = FNC.diffcheb(n, [-2, 2])
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)

U0 = mtx(lambda x, y: (x + 0.2) * exp(-12 * (x**2 + y**2)))
V0 = zeros(U0.shape)

We need to define chopping and extension for the $u$ component. This looks the same as in Example 13.2.3.

def extend(U):
    UU = zeros((m+1, n+1))
    UU[1:-1, 1:-1] = U
    return UU

def chop(U):
    return U[1:-1, 1:-1]

_, _, _, vec_v, unvec_v, _ = FNC.tensorgrid(x, y)
_, _, _, vec_u, unvec_u, _ = FNC.tensorgrid(x[1:-1], y[1:-1])
N = (m-1) * (n-1)    # number of interior points

def pack(U, V):
    return hstack([vec_u(chop(U)), vec_v(V)])

def unpack(w):
    U = extend(unvec_u(w[:N]))
    V = unvec_v(w[N:])
    return U, V

We can now define and solve the IVP. Since this problem is hyperbolic, a nonstiff integrator is faster than a stiff one.

def dw_dt(t, w):
    U, V = unpack(w)
    dU_dt = V
    dV_dt = Dxx @ U + U @ Dyy.T
    return pack(dU_dt, dV_dt)

from scipy.integrate import solve_ivp
sol = solve_ivp(dw_dt, (0, 4), pack(U0, V0), method="RK45", dense_output=True)
U = lambda t: unpack(sol.sol(t))[0]

fig, ax = subplots()
obj = ax.pcolormesh(X, Y, U(0), vmin=-0.1, vmax=0.1, cmap="RdBu", shading="gouraud")
time_text = ax.text(0.05, 0.9, '', transform=ax.transAxes)
ax.set_xlabel("$x$"),  ax.set_ylabel("$y$")
ax.set_aspect("equal")
ax.set_title("Wave equation in 2d")

def snapshot(t):
    global obj
    obj.remove()
    obj = ax.pcolormesh(X, Y, U(t), vmin=-0.1, vmax=0.1, cmap="RdBu", shading="gouraud")
    time_text.set_text(f"t = {t:.2f}")

anim = animation.FuncAnimation(fig, snapshot, frames=linspace(0, 4, 91))
anim.save("figures/wave-2d.mp4", fps=30);
close()

13.3 Laplace and Poisson equations¶

Example 13.3.1

A = array([[1, 2], [-2, 0]])
B = array([[1, 10, 100], [-5, 5, 3]])
print("A:")
print(A)
print("B:")
print(B)

A:
[[ 1  2]
 [-2  0]]
B:
[[  1  10 100]
 [ -5   5   3]]

Applying the definition manually, we get

A_kron_B = vstack([ hstack([A[0, 0] * B, A[0, 1] * B]), hstack([A[1, 0] * B, A[1, 1] * B]) ])
print(A_kron_B)

[[   1   10  100    2   20  200]
 [  -5    5    3  -10   10    6]
 [  -2  -20 -200    0    0    0]
 [  10  -10   -6    0    0    0]]

But it makes more sense to use kron from NumPy, or the scipy.sparse version when sparsity is to be preserved.

kron(A, B)

array([[   1,   10,  100,    2,   20,  200],
       [  -5,    5,    3,  -10,   10,    6],
       [  -2,  -20, -200,    0,    0,    0],
       [  10,  -10,   -6,    0,    0,    0]])

Example 13.3.2

We make a crude discretization for illustrative purposes.

m, n = 5, 6
x, Dx, Dxx = FNC.diffmat2(m, [0, 3])
y, Dy, Dyy = FNC.diffmat2(n, [-1, 1])
mtx, X, Y, vec, unvec, is_boundary = FNC.tensorgrid(x, y)

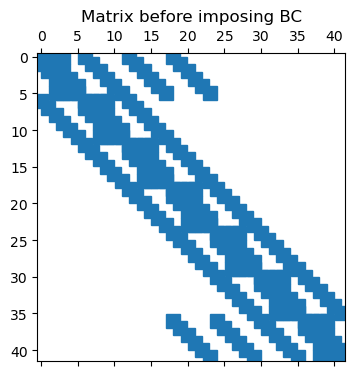

Here is a look at the matrix we called $\mathbf{L}$ (the discrete Laplacian), before any modifications are made for the boundary conditions. The combination of Kronecker products and finite differences produces a characteristic sparsity pattern.

import scipy.sparse as sp
Dxx = sp.lil_matrix(Dxx)
Dyy = sp.lil_matrix(Dyy)
Ix = sp.eye(m+1)
Iy = sp.eye(n+1)
A = sp.kron(Iy, Dxx) + sp.kron(Dyy, Ix)

spy(A)
title("Matrix before imposing BC");

The number of equations is equal to $(m+1)(n+1)$ , which is the total number of points on the grid.

N = (m+1) * (n+1)

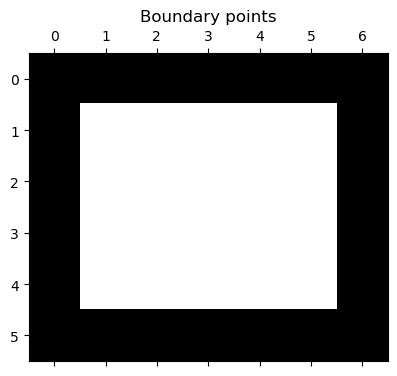

We now use the final output from Algorithm 13.2.1, which is a Boolean array indicating where the boundary points lie in the grid.

spy(is_boundary)
title("Boundary points");

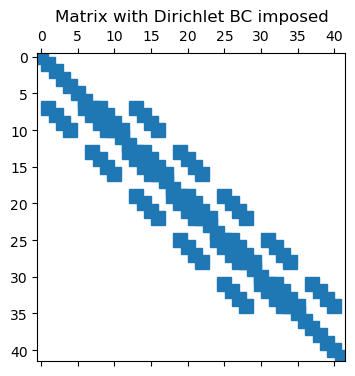

In order to impose Dirichlet boundary conditions, we use the boundary indicator to index into the rows of the system.

I = sp.eye(N, format="lil")
idx = vec(is_boundary)
A = A.tolil()
A[idx, :] = I[idx, :];    # Dirichlet conditions

spy(A)
title("Matrix with Dirichlet BC imposed");

Next, we evaluate ϕ on the grid to get the forcing vector of the linear system, and then modify the boundary rows to hold the boundary values—in this case, zero.

f = lambda x, y: x**2 - y + 2
b = vec(mtx(f))
b[idx] = 0

Now we can solve for $\mathbf{u}$ and reinterpret it as the matrix-shaped $\mathbf{U}$ , the solution on our grid.

from scipy.sparse.linalg import spsolve
u = spsolve(A.tocsr(), b)
U = unvec(u)
with printoptions(precision=4, suppress=True):
    print(U)

[[ 0.      0.      0.      0.      0.      0.      0.    ]
 [ 0.     -0.5512 -0.8252 -0.8791 -0.7476 -0.451   0.    ]
 [ 0.     -0.9109 -1.3939 -1.5092 -1.3003 -0.7928  0.    ]
 [ 0.     -1.1788 -1.7957 -1.9513 -1.7021 -1.0607  0.    ]
 [ 0.     -1.1409 -1.6859 -1.8182 -1.6083 -1.0407  0.    ]
 [ 0.      0.      0.      0.      0.      0.      0.    ]]

Example 13.3.3

First we define the problem on $[0,1]\times[0,2]$ .

f = lambda x, y: -sin(3 * x * y - 4 * y) * (9 * y**2 + (3 * x - 4) ** 2)
g = lambda x, y: sin(3 * x * y - 4 * y)
xspan = [0, 1]
yspan = [0, 2]

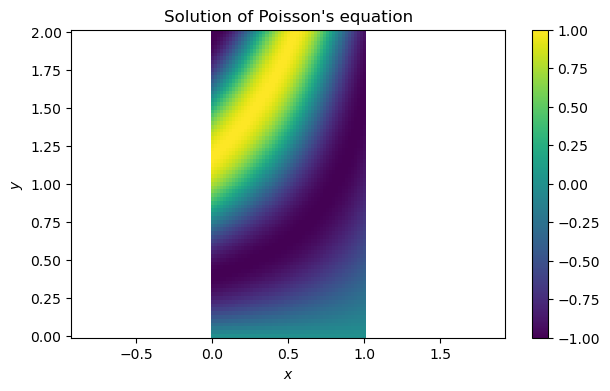

Here is the finite-difference solution.

U, X, Y = FNC.poissonfd(f, g, 50, xspan, 80, yspan)

Source

pcolormesh(X.T, Y.T, U.T, cmap="viridis")
xlabel("$x$"),  ylabel("$y$"),  axis("equal")
colorbar(), title("Solution of Poisson's equation");

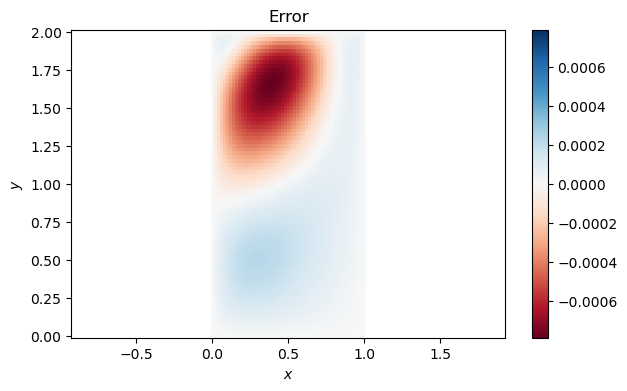

Since this is an artificial problem with a known solution, we can plot the error, which is a smooth function of $x$ and $y$ . It must be zero on the boundary; otherwise, we have implemented boundary conditions incorrectly.

error = g(X, Y) - U    # because we set up g as the exact solution
M = max(abs(error))

pcolormesh(X.T, Y.T, error.T, vmin=-M, vmax=M, cmap="RdBu")
xlabel("$x$"),  ylabel("$y$"),  axis("equal")
colorbar(),  title("Error");

13.4 Nonlinear elliptic PDEs¶

Example 13.4.2

All we need to define are ϕ from (13.4.2) for the PDE, and a trivial zero function for the boundary condition.

lamb = 1.5
phi = lambda x, y, u, ux, uxx, uy, uyy: uxx + uyy - lamb / (u + 1)**2
g = lambda x, y: 0

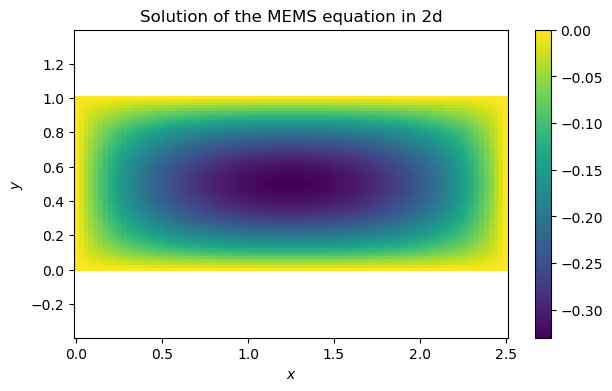

Here is the solution for $m=15$ , $n=8$ .

u = FNC.elliptic(phi, g, 15, [0, 2.5], 8, [0, 1])

print(f"solution at (2, 0.6) is {u(2, 0.6):.7f}")

solution at (2, 0.6) is -0.2264594

Source

x = linspace(0, 2.5, 90)
y = linspace(0, 1, 60)
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)
U = mtx(u)

pcolormesh(X.T, Y.T, U.T, cmap="viridis")
xlabel("$x$"),  ylabel("$y$"),  axis("equal")
colorbar()
title("Solution of the MEMS equation in 2d");

In the absence of an exact solution, how can we be confident that the solution is accurate? First, the Levenberg iteration converged without issuing a warning, so we should feel confident that the discrete equations were solved. We can check the boundary values easily. For example,

err = norm(u(x, 0) - g(x, 0), inf)
print(f"max error on bottom edge: {err:.2e}")

max error on bottom edge: 9.56e-23

Assuming that we encoded the PDE correctly, the remaining source error is truncation from the discretization. We can estimate that by refining the grid a bit and seeing how much the numerical solution changes.

x_test = linspace(0, 2.5, 6)
y_test = linspace(0, 1, 6)
mtx_test, X_test, Y_test, _, _, _ = FNC.tensorgrid(x_test, y_test)

with printoptions(precision=7, suppress=True):
    print(mtx_test(u))

[[ 0.         0.         0.         0.         0.         0.       ]
 [ 0.        -0.1479641 -0.2264594 -0.2264594 -0.1479641  0.       ]
 [ 0.        -0.1958612 -0.3059492 -0.3059492 -0.1958612  0.       ]
 [ 0.        -0.1958612 -0.3059492 -0.3059492 -0.1958612  0.       ]
 [ 0.        -0.1479641 -0.2264594 -0.2264594 -0.1479641  0.       ]
 [-0.         0.         0.         0.         0.         0.       ]]

u = FNC.elliptic(phi, g, 25, [0, 2.5], 14, [0, 1])
with printoptions(precision=7, suppress=True):
    print(mtx_test(u))

[[ 0.        -0.        -0.        -0.         0.         0.       ]
 [-0.        -0.1479584 -0.226453  -0.226453  -0.1479584  0.       ]
 [ 0.        -0.195861  -0.3059293 -0.3059293 -0.195861   0.       ]
 [-0.        -0.195861  -0.3059293 -0.3059293 -0.195861  -0.       ]
 [-0.        -0.1479584 -0.226453  -0.226453  -0.1479584 -0.       ]
 [-0.        -0.        -0.         0.        -0.         0.       ]]

The original solution seems to be accurate to about four digits.

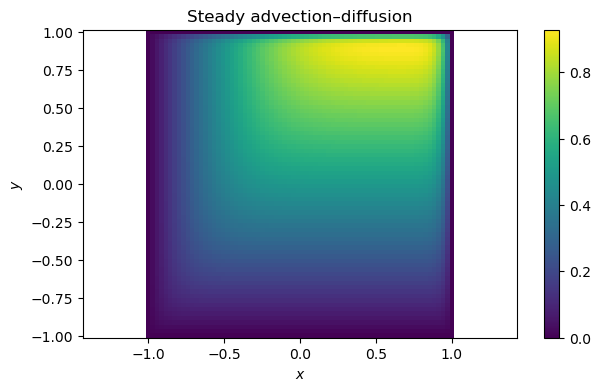

Example 13.4.3

phi = lambda x, y, u, ux, uxx, uy, uyy: 1 - ux - 2*uy + 0.05 * (uxx + uyy)
g = lambda x, y: 0
u = FNC.elliptic(phi, g, 32, [-1, 1], 32, [-1, 1])

x = y = linspace(-1, 1, 70)
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)
U = mtx(u)

pcolormesh(X.T, Y.T, U.T, cmap="viridis")
xlabel("$x$"),  ylabel("$y$"),  axis("equal")
colorbar()
title("Steady advection–diffusion");

Example 13.4.4

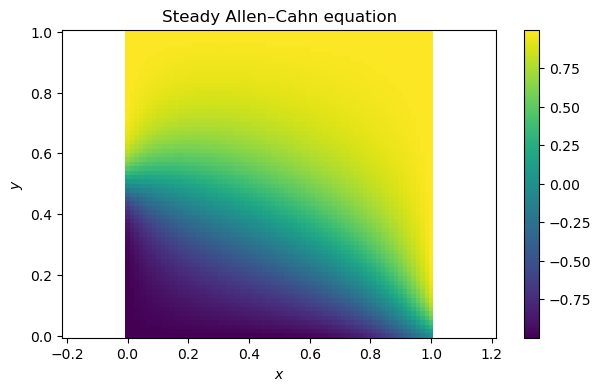

The following defines the PDE and a nontrivial Dirichlet boundary condition for the square $[0,1]^2$ .

phi = lambda x, y, u, ux, uxx, uy, uyy: u * (1 - u**2) + 0.05 * (uxx + uyy)
g = lambda x, y: tanh(5 * (x + 2*y - 1))

We solve the PDE and then plot the result.

u = FNC.elliptic(phi, g, 36, [0, 1], 36, [0, 1])

Source

x = y = linspace(0, 1, 70)
mtx, X, Y, _, _, _ = FNC.tensorgrid(x, y)
U = mtx(u)
pcolormesh(X.T, Y.T, U.T, cmap="viridis")
xlabel("$x$"),  ylabel("$y$"),  axis("equal")
colorbar(),  title("Steady Allen–Cahn equation");
