In Finite differences we used finite differences to turn a discrete collection of function values into an estimate of the derivative of the function at a point. Just as with differentiation in elementary calculus, we can generalize differences at a point into an operation that maps discretized functions to discretized derivatives.
The derivative of a function is a unique result. The same is not true for our finite-dimensional approximation of the derivative, though.
10.3.1 Matrices for finite differences ¶ In Chapter 5 and Chapter 9 we used the notation t k t_k t k for nodes to more clearly distinguish them from the continuous variable x x x . Since we will soon have problems that discretize both x x x and t t t variables, though, we now switch to using the same letter for nodes as the continuous variable.
We first discretize the interval x ∈ [ a , b ] x\in[a,b] x ∈ [ a , b ] into equal pieces of length h = ( b − a ) / n h=(b-a)/n h = ( b − a ) / n , leading to the nodes
x i = a + i h , i = 0 , … , n . x_i=a+i h, \qquad i=0,\ldots,n. x i = a + ih , i = 0 , … , n . Note again that our node indexing scheme starts at zero. Our goal is to find a vector g \mathbf{g} g such that g i ≈ f ′ ( x i ) g_i \approx f'(x_i) g i ≈ f ′ ( x i ) for i = 0 , … , n i=0,\ldots,n i = 0 , … , n . Our first try is the forward difference formula (5.4.2) ,
g i = f i + 1 − f i h , t = 0 , … , n − 1. g_i = \frac{f_{i+1}-f_i}{h}, \qquad t=0,\ldots,n-1. g i = h f i + 1 − f i , t = 0 , … , n − 1. However, this leaves g n g_n g n undefined, because the formula would refer to the unavailable value f n + 1 f_{n+1} f n + 1 . For g n g_n g n we could resort to the backward difference
g n = f n − f n − 1 h . g_n = \frac{f_{n}-f_{n-1}}{h}. g n = h f n − f n − 1 . We can summarize the entire set of formulas by defining
f = [ f ( x 0 ) f ( x 1 ) ⋮ f ( x n − 1 ) f ( x n ) ] , \mathbf{f} =
\begin{bmatrix}
f(x_0) \\[1mm] f(x_1) \\[1mm] \vdots \\[1mm] f(x_{n-1}) \\[1mm] f(x_n)
\end{bmatrix}, \quad f = ⎣ ⎡ f ( x 0 ) f ( x 1 ) ⋮ f ( x n − 1 ) f ( x n ) ⎦ ⎤ , and then the vector equation
[ f ′ ( x 0 ) f ′ ( x 1 ) ⋮ f ′ ( x n − 1 ) f ′ ( x n ) ] ≈ D x f , D x = 1 h [ − 1 1 − 1 1 ⋱ ⋱ − 1 1 − 1 1 ] . \begin{bmatrix}
f'(x_0) \\[1mm] f'(x_1) \\[1mm] \vdots \\[1mm] f'(x_{n-1}) \\[1mm] f'(x_n)
\end{bmatrix}
\approx
\mathbf{D}_x \mathbf{f}, \qquad
\mathbf{D}_x
= \frac{1}{h}
\begin{bmatrix}
-1 & 1 & & & \\[1mm]
& -1 & 1 & & \\[1mm]
& & \ddots & \ddots & \\[1mm]
& & & -1 & 1 \\[1mm]
& & & -1 & 1
\end{bmatrix}. ⎣ ⎡ f ′ ( x 0 ) f ′ ( x 1 ) ⋮ f ′ ( x n − 1 ) f ′ ( x n ) ⎦ ⎤ ≈ D x f , D x = h 1 ⎣ ⎡ − 1 1 − 1 1 ⋱ ⋱ − 1 − 1 1 1 ⎦ ⎤ . The matrix D x \mathbf{D}_x D x in (10.3.5) is a finite-difference differentiation matrix. Here as elsewhere, elements of D x \mathbf{D}_x D x that are not shown are zero. Each row of D x \mathbf{D}_x D x gives the weights of a finite-difference formula being used at one of the nodes.
The differentiation matrix D x \mathbf{D}_x D x in (10.3.5) is not a unique choice. In fact, it’s about the least accurate choice possible, as explained in Convergence of finite differences . We are theoretically free to use whatever finite-difference formulas we want in each row, such as those in Table 5.4.1 and Table 5.4.2 , although it makes sense to choose rows that are as similar as possible. For instance, using second-order centered differences where possible and second-order one-sided formulas at the boundary points leads to
D x = 1 h [ − 3 2 2 − 1 2 − 1 2 0 1 2 − 1 2 0 1 2 ⋱ ⋱ ⋱ − 1 2 0 1 2 1 2 − 2 3 2 ] . \mathbf{D}_x = \frac{1}{h}
\begin{bmatrix}
-\frac{3}{2} & 2 & -\frac{1}{2} & & & \\[1mm]
-\frac{1}{2} & 0 & \frac{1}{2} & & & \\[1mm]
& -\frac{1}{2} & 0 & \frac{1}{2} & & \\
& & \ddots & \ddots & \ddots & \\
& & & -\frac{1}{2} & 0 & \frac{1}{2} \\[1mm]
& & & \frac{1}{2} & -2 & \frac{3}{2}
\end{bmatrix}. D x = h 1 ⎣ ⎡ − 2 3 − 2 1 2 0 − 2 1 − 2 1 2 1 0 ⋱ 2 1 ⋱ − 2 1 2 1 ⋱ 0 − 2 2 1 2 3 ⎦ ⎤ . The differentiation matrices so far are all sparse and banded, i.e., all the nonzero values are along diagonals close to the main diagonal.
10.3.2 Second derivative ¶ Similarly, we can define differentiation matrices for second derivatives. For example,
[ f ′ ′ ( x 0 ) f ′ ′ ( x 1 ) f ′ ′ ( x 2 ) ⋮ f ′ ′ ( x n − 1 ) f ′ ′ ( x n ) ] ≈ 1 h 2 [ 2 − 5 4 − 1 1 − 2 1 1 − 2 1 ⋱ ⋱ ⋱ 1 − 2 1 − 1 4 − 5 2 ] [ f ( x 0 ) f ( x 1 ) f ( x 2 ) ⋮ f ( x n − 1 ) f ( x n ) ] = D x x f . \begin{bmatrix}
f''(x_0) \\[1mm] f''(x_1) \\[1mm] f''(x_2) \\[1mm] \vdots \\[1mm] f''(x_{n-1}) \\[1mm] f''(x_n)
\end{bmatrix}
\approx
\frac{1}{h^2}
\begin{bmatrix}
2 & -5 & 4 & -1 & & \\[1mm]
1 & -2 & 1 & & & \\[1mm]
& 1 & -2 & 1 & & \\[1mm]
& & \ddots & \ddots & \ddots & \\[1mm]
& & & 1 & -2 & 1 \\[1mm]
& & -1 & 4 & -5 & 2
\end{bmatrix}
\begin{bmatrix}
f(x_0) \\[1mm] f(x_1) \\[1mm] f(x_2) \\[1mm] \vdots \\[1mm] f(x_{n-1}) \\[1mm] f(x_n)
\end{bmatrix} = \mathbf{D}_{xx} \mathbf{f}. ⎣ ⎡ f ′′ ( x 0 ) f ′′ ( x 1 ) f ′′ ( x 2 ) ⋮ f ′′ ( x n − 1 ) f ′′ ( x n ) ⎦ ⎤ ≈ h 2 1 ⎣ ⎡ 2 1 − 5 − 2 1 4 1 − 2 ⋱ − 1 − 1 1 ⋱ 1 4 ⋱ − 2 − 5 1 2 ⎦ ⎤ ⎣ ⎡ f ( x 0 ) f ( x 1 ) f ( x 2 ) ⋮ f ( x n − 1 ) f ( x n ) ⎦ ⎤ = D xx f . We have multiple choices again for D x x \mathbf{D}_{xx} D xx . Moreover, while it is possible to define D x x \mathbf{D}_{xx} D xx as D x 2 \mathbf{D}_x^2 D x 2 for some first-derivative D x \mathbf{D}_x D x , it is not required---and often, not desirable---to do so, because it may put nonzeros farther from the diagonal than is necessary (see Finite differences ).
10.3.3 Implementation ¶ Together the matrices (10.3.6) and (10.3.7) give second-order approximations of the first and second derivatives at all nodes. These matrices, as well as the nodes x 0 , … , x n x_0,\ldots,x_n x 0 , … , x n , are returned by Function 10.3.1 .
Second-order differentiation matrices1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
"""
diffmat2(n, xspan)
Compute 2nd-order-accurate differentiation matrices on `n`+1 points
in the interval `xspan`. Returns a vector of nodes and the matrices
for the first and second derivatives.
"""
function diffmat2(n, xspan)
a, b = xspan
h = (b - a) / n
x = [a + i * h for i in 0:n] # nodes
# Define most of Dₓ by its diagonals.
dp = fill(0.5 / h, n) # superdiagonal
dm = fill(-0.5 / h, n) # subdiagonal
Dₓ = diagm(-1 => dm, 1 => dp)
# Fix first and last rows.
Dₓ[1, 1:3] = [-1.5, 2, -0.5] / h
Dₓ[n+1, n-1:n+1] = [0.5, -2, 1.5] / h
# Define most of Dₓₓ by its diagonals.
d0 = fill(-2 / h^2, n + 1) # main diagonal
dp = ones(n) / h^2 # super- and subdiagonal
Dₓₓ = diagm(-1 => dp, 0 => d0, 1 => dp)
# Fix first and last rows.
Dₓₓ[1, 1:4] = [2, -5, 4, -1] / h^2
Dₓₓ[n+1, n-2:n+1] = [-1, 4, -5, 2] / h^2
return x, Dₓ, Dₓₓ
end
Second-order differentiation matrices1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
function [x,Dx,Dxx] = diffmat2(n,xspan)
%DIFFMAT2 Second-order accurate differentiation matrices.
% Input:
% n number of subintervals (one less than the number of nodes)
% xspan interval endpoints
% Output:
% x equispaced nodes
% Dx matrix for first derivative
% Dxx matrix for second derivative
a = xspan(1); b = xspan(2);
h = (b-a)/n;
x = a + h*(0:n)'; % nodes
% Define most of Dx by its diagonals.
dp = 0.5*ones(n,1)/h; % superdiagonal
dm = -0.5*ones(n,1)/h; % subdiagonal
Dx = diag(dm,-1) + diag(dp,1);
% Fix first and last rows.
Dx(1,1:3) = [-1.5,2,-0.5]/h;
Dx(n+1,n-1:n+1) = [0.5,-2,1.5]/h;
% Define most of Dxx by its diagonals.
d0 = -2*ones(n+1,1)/h^2; % main diagonal
dp = ones(n,1)/h^2; % superdiagonal and subdiagonal
Dxx = diag(dp,-1) + diag(d0) + diag(dp,1);
% Fix first and last rows.
Dxx(1,1:4) = [2,-5,4,-1]/h^2;
Dxx(n+1,n-2:n+1) = [-1,4,-5,2]/h^2;
Second-order differentiation matrices1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
def diffmat2(n, xspan):
"""
diffmat2(n, xspan)
Compute 2nd-order-accurate differentiation matrices on n+1 points in the
interval xspan. Return a vector of nodes, and the matrices for the first
and second derivatives.
"""
a, b = xspan
h = (b - a) / n
x = np.linspace(a, b, n + 1) # nodes
# Define most of Dx by its diagonals.
dp = 0.5 / h * np.ones(n) # superdiagonal
dm = -0.5 / h * np.ones(n) # subdiagonal
Dx = np.diag(dm, -1) + np.diag(dp, 1)
# Fix first and last rows.
Dx[0, :3] = np.array([-1.5, 2, -0.5]) / h
Dx[-1, -3:] = np.array([0.5, -2, 1.5]) / h
# Define most of Dxx by its diagonals.
d0 = -2 / h**2 * np.ones(n + 1) # main diagonal
dp = np.ones(n) / h**2 # superdiagonal and subdiagonal
Dxx = np.diag(d0, 0) + np.diag(dp, -1) + np.diag(dp, 1)
# Fix first and last rows.
Dxx[0, :4] = np.array([2, -5, 4, -1]) / h**2
Dxx[-1, -4:] = np.array([-1, 4, -5, 2]) / h**2
return x, Dx, Dxx
Example 10.3.1 (Differentiation matrices)
Example 10.3.1 We test first-order and second-order differentiation matrices for the function x + exp ( sin 4 x ) x + \exp(\sin 4x) x + exp ( sin 4 x ) over [ − 1 , 1 ] [-1,1] [ − 1 , 1 ] .
f = x -> x + exp(sin(4 * x));
For reference, here are the exact first and second derivatives.
df_dx = x -> 1 + 4 * exp(sin(4x)) * cos(4x);
d2f_dx2 = x -> 4 * exp(sin(4x)) * (4 * cos(4x)^2 - 4 * sin(4x));
We discretize on equally spaced nodes and evaluate f f f at the nodes.
t, Dₓ, Dₓₓ = FNC.diffmat2(18, [-1, 1])
y = f.(t);
Then the first two derivatives of f f f each require one matrix-vector multiplication.
yₓ = Dₓ * y
yₓₓ = Dₓₓ * y;

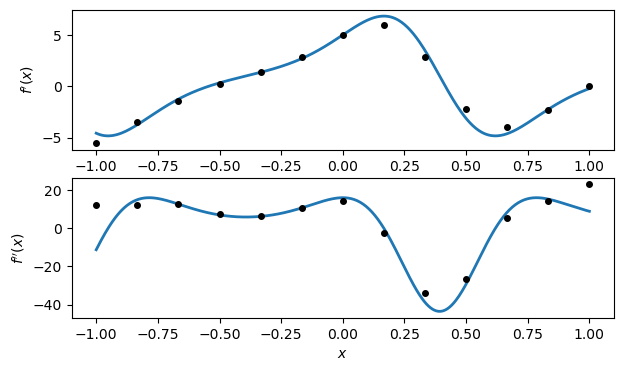

The results show poor accuracy for this small value of n n n .
using Plots
plot(df_dx, -1, 1, layout = 2, xaxis = (L"x"), yaxis = (L"f'(x)"))
scatter!(t, yₓ, subplot = 1)
plot!(d2f_dx2, -1, 1, subplot = 2, xaxis = (L"x"), yaxis = (L"f''(x)"))
scatter!(t, yₓₓ, subplot = 2)

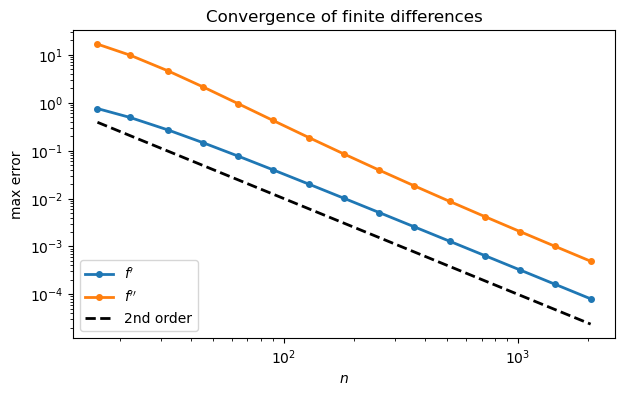

A convergence experiment confirms the order of accuracy. Because we expect an algebraic convergence rate, we use a log-log plot of the errors.
n = @. round(Int, 2^(4:0.5:11))
err = zeros(length(n), 2)
for (k, n) in enumerate(n)
t, Dₓ, Dₓₓ = FNC.diffmat2(n, [-1, 1])
y = f.(t)
err[k, 1] = norm(df_dx.(t) - Dₓ * y, Inf)
err[k, 2] = norm(d2f_dx2.(t) - Dₓₓ * y, Inf)
end
plot(n, err, m = :o, label = [L"f'" L"f''"])
plot!(n, 10 * 10 * n .^ (-2);
l = (:dash, :black),
label = "2nd order",
xaxis = (:log10, "n"),
yaxis = (:log10, "max error"),
title = "Convergence of finite differences")
Example 10.3.1 We test first-order and second-order differentiation matrices for the function x + exp ( sin 4 x ) x + \exp(\sin 4x) x + exp ( sin 4 x ) over [ − 1 , 1 ] [-1,1] [ − 1 , 1 ] .
f = @(x) x + exp(sin(4*x));
For reference, here are the exact first and second derivatives.
df_dx = @(x) 1 + 4 * exp(sin(4*x)) .* cos(4*x);
d2f_dx2 = @(x) 4 * exp(sin(4*x)) .* (4*cos(4*x).^2 - 4*sin(4*x));
We discretize on equally spaced nodes and evaluate f f f at the nodes.
[t, Dx, Dxx] = diffmat2(12, [-1 1]);
y = f(t);
Then the first two derivatives of f f f each require one matrix-vector multiplication.
yx = Dx * y;
yxx = Dxx * y;

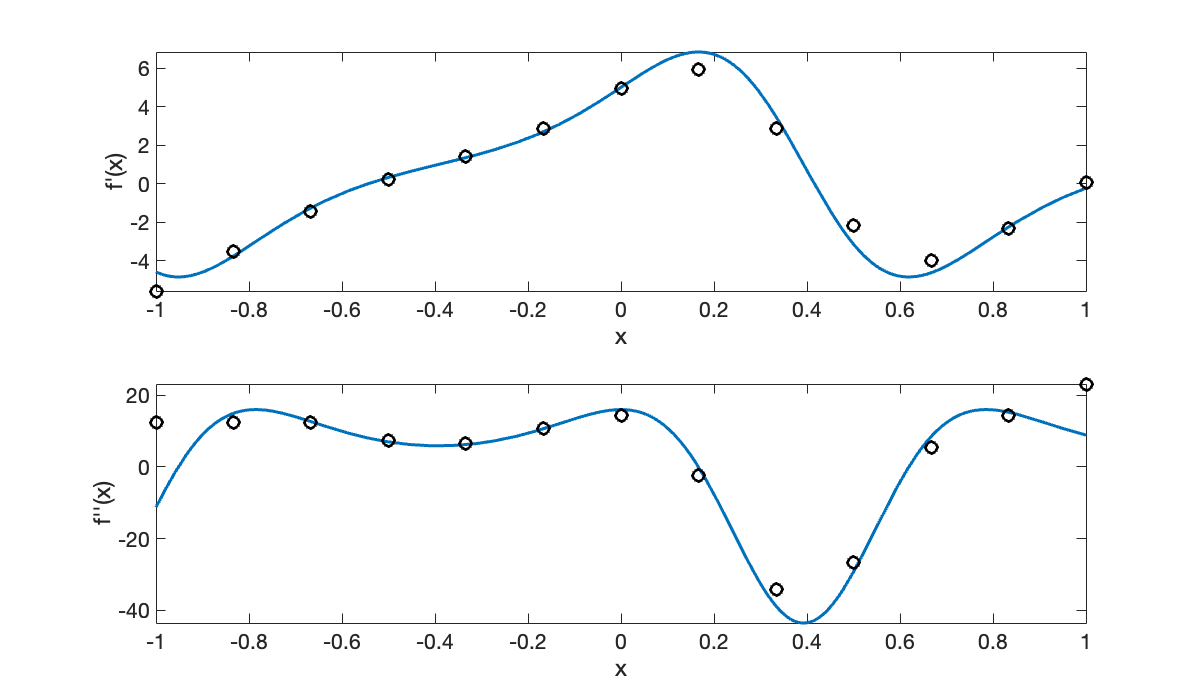

The results show poor accuracy for this small value of n n n .
clf, subplot(2, 1, 1)
fplot(df_dx, [-1, 1]), hold on
plot(t, yx, 'ko')
xlabel('x'), ylabel('f''(x)')
subplot(2, 1, 2)
fplot(d2f_dx2, [-1, 1]), hold on
plot(t, yxx, 'ko')
xlabel('x'), ylabel('f''''(x)')

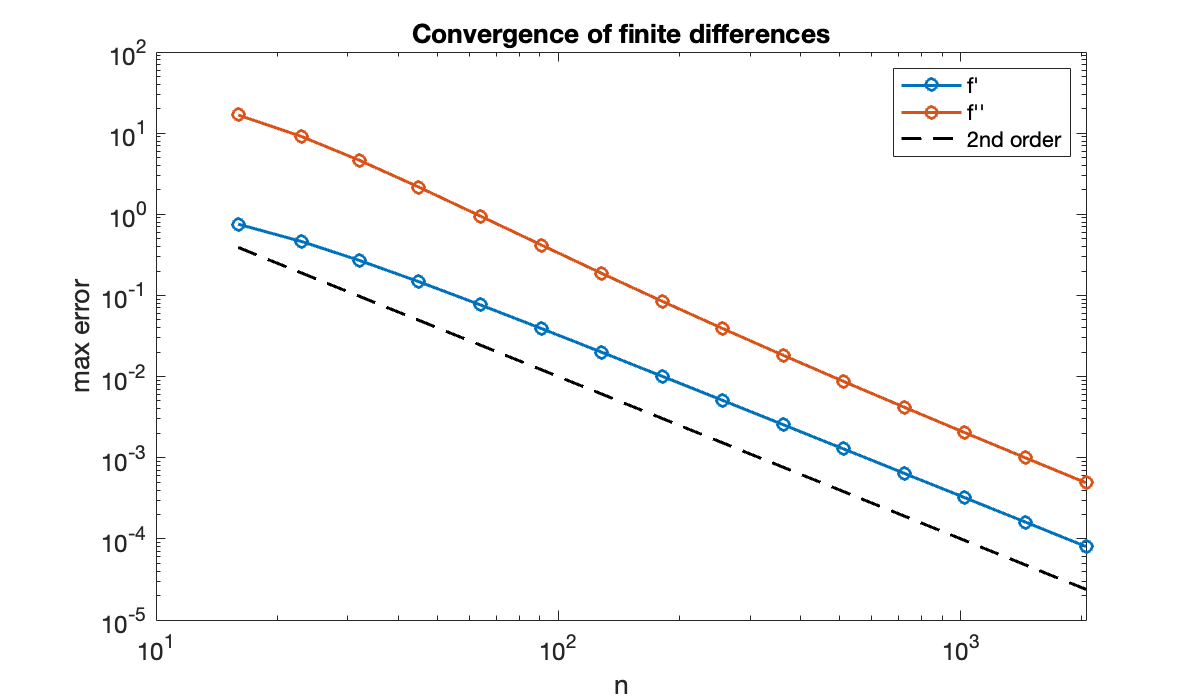

An convergence experiment confirms the order of accuracy. Because we expect an algebraic convergence rate, we use a log-log plot of the errors.
n = round( 2 .^ (4:.5:11)' );
err = zeros(length(n), 2);
for k = 1:length(n)
[t, Dx, Dxx] = diffmat2(n(k), [-1, 1]);
y = f(t);
err(k, 1) = norm(df_dx(t) - Dx * y, Inf);
err(k, 2) = norm(d2f_dx2(t) - Dxx * y, Inf);
end
clf
loglog(n, err, 'o-'), hold on
loglog(n, 100 * n.^(-2), 'k--')
legend("f'", "f''", '2nd order')
xlabel('n'), ylabel('max error')
title('Convergence of finite differences')
Example 10.3.1 We test first-order and second-order differentiation matrices for the function x + exp ( sin 4 x ) x + \exp(\sin 4x) x + exp ( sin 4 x ) over [ − 1 , 1 ] [-1,1] [ − 1 , 1 ] .
f = lambda x: x + exp( sin(4 * x) )
For reference, here are the exact first and second derivatives.
df_dx = lambda x: 1 + 4 * exp(sin(4 * x)) * cos(4 * x)
d2f_dx2 = lambda x: 4 * exp(sin(4 * x)) * (4 * cos(4 * x)**2 - 4 * sin(4 * x))
We discretize on equally spaced nodes and evaluate f f f at the nodes.
t, Dx, Dxx = FNC.diffmat2(12, [-1, 1])
y = f(t)
Then the first two derivatives of f f f each require one matrix-vector multiplication.
yx = Dx @ y
yxx = Dxx @ y
The results show poor accuracy for this small value of n n n .
x = linspace(-1, 1, 500)
subplot(2, 1, 1)
plot(x, df_dx(x))
plot(t, yx, "ko")
xlabel("$x$"), ylabel("$f'(x)$")
subplot(2, 1, 2)
plot(x, d2f_dx2(x))
plot(t, yxx, "ko")
xlabel("$x$"), ylabel("$f''(x)$");
A convergence experiment confirms the order of accuracy. Because we expect an algebraic convergence rate, we use a log-log plot of the errors.
N = array([int(2**k) for k in arange(4, 11.5, 0.5)])
err1 = zeros(len(N))
err2 = zeros(len(N))
for k, n in enumerate(N):
t, Dx, Dxx = FNC.diffmat2(n, [-1, 1])
y = f(t)
err1[k] = norm(df_dx(t) - Dx @ y, inf)
err2[k] = norm(d2f_dx2(t) - Dxx @ y, inf)
loglog(N, err1, "-o", label="$f'$")
loglog(N, err2, "-o", label="$f''$")
plot(N, 10 * 10 / N**2, "k--", label="2nd order")
xlabel("$n$"), ylabel("max error")
legend(loc="lower left")
title("Convergence of finite differences");
10.3.4 Spectral differentiation ¶ Recall that finite-difference formulas are derived in three steps:
Choose a node index set S S S near node i i i . Interpolate with a polynomial using the nodes in S S S . Differentiate the interpolant and evaluate at node i i i . We can modify this process by using a global interpolant, either polynomial or trigonometric, as in Chapter 9 . Rather than choosing a different index set for each node, we use all of the nodes each time.
In a nonperiodic setting we use Chebyshev second-kind points for stability:
x k = − cos ( k π n ) , k = 0 , … , n ; x_k = -\cos\left(\frac{k \pi}{n}\right), \qquad k=0,\ldots,n; x k = − cos ( n kπ ) , k = 0 , … , n ; then the resulting Chebyshev differentiation matrix has entries
D 00 = 2 n 2 + 1 6 , D n n = − 2 n 2 + 1 6 , D i j = { − x i 2 ( 1 − x i 2 ) , i = j , c i c j ( − 1 ) i + j x i − x j , i ≠ j , \begin{gathered}
D_{00} = \dfrac{2n^2+1}{6}, \qquad D_{n n} = -\dfrac{2n^2+1}{6}, \\
D_{ij} =
\begin{cases}
-\dfrac{x_i}{2(1-x_i^2)}, & i=j, \\[4mm]
\dfrac{c_i}{c_j}\, \dfrac{(-1)^{i+j}}{x_i-x_j}, & i\neq j,
\end{cases}
\end{gathered} D 00 = 6 2 n 2 + 1 , D nn = − 6 2 n 2 + 1 , D ij = ⎩ ⎨ ⎧ − 2 ( 1 − x i 2 ) x i , c j c i x i − x j ( − 1 ) i + j , i = j , i = j , where c 0 = c n = 2 c_0=c_n=2 c 0 = c n = 2 and c i = 1 c_i=1 c i = 1 for i = 1 , … , n − 1 i=1,\ldots,n-1 i = 1 , … , n − 1 .
The simplest way to compute a second derivative is by via D x x = D x 2 \mathbf{D}_{xx} = \mathbf{D}_x^2 D xx = D x 2 , as there is no longer any concern about the sparsity of the result.
Function 10.3.2 returns these two matrices. The function uses a change of variable to transplant the standard [ − 1 , 1 ] [-1,1] [ − 1 , 1 ] for Chebyshev nodes to any [ a , b ] [a,b] [ a , b ] . It also takes a different approach to computing the diagonal elements of D x \mathbf{D}_x D x than the formulas in (10.3.9) (see Exercise 5 ).
Chebyshev differentiation matrices1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
"""
diffcheb(n, xspan)
Compute Chebyshev differentiation matrices on `n`+1 points in the
interval `xspan`. Returns a vector of nodes and the matrices for the
first and second derivatives.
"""
function diffcheb(n, xspan)
x = [-cos(k * π / n) for k in 0:n] # nodes in [-1,1]
# Off-diagonal entries.
c = [2; ones(n - 1); 2] # endpoint factors
dij = (i, j) -> (-1)^(i + j) * c[i+1] / (c[j+1] * (x[i+1] - x[j+1]))
Dₓ = [dij(i, j) for i in 0:n, j in 0:n]
# Diagonal entries.
Dₓ[isinf.(Dₓ)] .= 0 # fix divisions by zero on diagonal
s = sum(Dₓ, dims = 2)
Dₓ -= diagm(s[:, 1]) # "negative sum trick"
# Transplant to [a,b].
a, b = xspan
x = @. a + (b - a) * (x + 1) / 2
Dₓ = 2 * Dₓ / (b - a) # chain rule
# Second derivative.
Dₓₓ = Dₓ^2
return x, Dₓ, Dₓₓ
end
Chebyshev differentiation matrices1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
function [x,Dx,Dxx] = diffcheb(n,xspan)
%DIFFCHEB Chebyshev differentiation matrices.
% Input:
% n number of subintervals (integer)
% xspan interval endpoints (vector)
% Output:
% x Chebyshev nodes in domain (length n+1)
% Dx matrix for first derivative (n+1 by n+1)
% Dxx matrix for second derivative (n+1 by n+1)
x = -cos( (0:n)'*pi/n ); % nodes in [-1,1]
Dx = zeros(n+1);
c = [2; ones(n-1,1); 2]; % endpoint factors
i = (0:n)'; % row indices
% Off-diagonal entries
for j = 0:n
num = c(i+1).*(-1).^(i+j);
den = c(j+1)*(x-x(j+1));
Dx(:,j+1) = num./den;
end
% Diagonal entries
Dx(isinf(Dx)) = 0; % fix divisions by zero on diagonal
Dx = Dx - diag(sum(Dx,2)); % "negative sum trick"
% Transplant to [a,b]
a = xspan(1); b = xspan(2);
x = a + (b-a)*(x+1)/2;
Dx = 2*Dx/(b-a);
% Second derivative
Dxx = Dx^2;
Chebyshev differentiation matrices1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
def diffcheb(n, xspan):
"""
diffcheb(n, xspan)
Compute Chebyshev differentiation matrices on n+1 points in the
interval xspan. Return a vector of nodes, and the matrices for the first
and second derivatives.
"""
x = -np.cos(np.arange(n + 1) * np.pi / n) # nodes in [-1,1]
Dx = np.zeros([n + 1, n + 1])
c = np.hstack([2.0, np.ones(n - 1), 2.0]) # endpoint factors
# Off-diagonal entries
Dx = np.zeros([n + 1, n + 1])
for i in range(n + 1):
for j in range(n + 1):
if i != j:
Dx[i, j] = (-1) ** (i + j) * c[i] / (c[j] * (x[i] - x[j]))
# Diagonal entries by the "negative sum trick"
for i in range(n + 1):
Dx[i, i] = -np.sum([Dx[i, j] for j in range(n + 1) if j != i])
# Transplant to [a,b]
a, b = xspan
x = a + (b - a) * (x + 1) / 2
Dx = 2 * Dx / (b - a)
# Second derivative
Dxx = Dx @ Dx
return x, Dx, Dxx
Example 10.3.2 (Chebyshev differentiation matrices)
Example 10.3.2 Here is a 4 × 4 4\times 4 4 × 4 Chebyshev differentiation matrix.
t, Dₓ = FNC.diffcheb(3, [-1, 1])
Dₓ
4×4 Matrix{Float64}:
-3.16667 4.0 -1.33333 0.5
-1.0 0.333333 1.0 -0.333333
0.333333 -1.0 -0.333333 1.0
-0.5 1.33333 -4.0 3.16667
We again test the convergence rate.
f = x -> x + exp(sin(4 * x));
df_dx = x -> 1 + 4 * exp(sin(4 * x)) * cos(4 * x);
d2f_dx2 = x -> 4 * exp(sin(4 * x)) * (4 * cos(4 * x)^2 - 4 * sin(4 * x));
n = 5:5:70
err1 = zeros(size(n))
err2 = zeros(size(n))
for (k, n) in enumerate(n)
t, Dₓ, Dₓₓ = FNC.diffcheb(n, [-1, 1])
y = f.(t)
err1[k] = norm(df_dx.(t) - Dₓ * y, Inf)
err2[k] = norm(d2f_dx2.(t) - Dₓₓ * y, Inf)
end

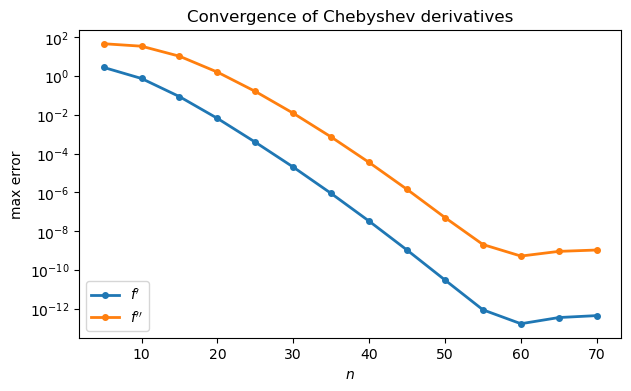

Since we expect a spectral convergence rate, we use a semi-log plot for the error.
plot(n, [err1 err2]; m = :o,
label=[L"f'" L"f''"],
xaxis=(L"n"), yaxis = (:log10, "max error"),
title="Convergence of Chebyshev derivatives")
Example 10.3.2 Here is a 4 × 4 4\times 4 4 × 4 Chebyshev differentiation matrix.
[t, Dx] = diffcheb(3, [-1, 1]);
format rat
Dx
We again test the convergence rate.
f = @(x) x + exp(sin(4*x));
df_dx = @(x) 1 + 4 * exp(sin(4*x)) .* cos(4*x);
d2f_dx2 = @(x) 4 * exp(sin(4*x)) .* (4*cos(4*x).^2 - 4*sin(4*x));
n = 5:5:70;
err = zeros(length(n), 2);
for k = 1:length(n)
[t, Dx, Dxx] = diffcheb(n(k), [-1, 1]);
y = f(t);
err(k, 1) = norm(df_dx(t) - Dx * y, Inf);
err(k, 2) = norm(d2f_dx2(t) - Dxx * y, Inf);
end

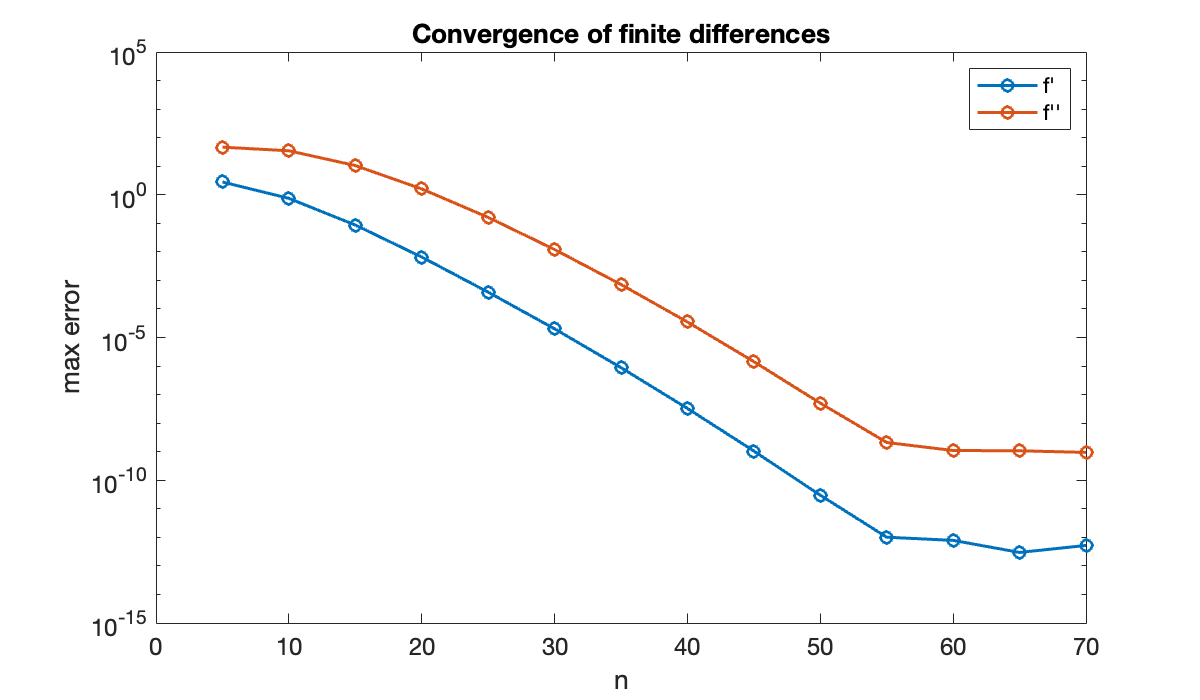

Since we expect a spectral convergence rate, we use a semi-log plot for the error.
clf, format
semilogy(n, err, 'o-'), hold on
legend("f'", "f''")
xlabel('n'), ylabel('max error')
title('Convergence of finite differences')
Example 10.3.2 Here is a 4 × 4 4\times 4 4 × 4 Chebyshev differentiation matrix.
t, Dx, Dxx = FNC.diffcheb(3, [-1, 1])
print(Dx)
[[-3.16666667 4. -1.33333333 0.5 ]
[-1. 0.33333333 1. -0.33333333]
[ 0.33333333 -1. -0.33333333 1. ]
[-0.5 1.33333333 -4. 3.16666667]]
We again test the convergence rate.
f = lambda x: x + exp(sin(4 * x))
df_dx = lambda x: 1 + 4 * exp(sin(4 * x)) * cos(4 * x)
d2f_dx2 = lambda x: 4 * exp(sin(4 * x)) * (4 * cos(4 * x) ** 2 - 4 * sin(4 * x))
N = range(5, 75, 5)
err1 = zeros(len(N))
err2 = zeros(len(N))
err = zeros((len(N), 2))
for k, n in enumerate(N):
t, Dx, Dxx = FNC.diffcheb(n, [-1, 1])
y = f(t)
err[k, 0] = norm(df_dx(t) - Dx @ y, inf)
err[k, 1] = norm(d2f_dx2(t) - Dxx @ y, inf)
Since we expect a spectral convergence rate, we use a semi-log plot for the error.
semilogy(N, err, "-o")
xlabel("$n$"), ylabel("max error")
legend(["$f'$", "$f''$"], loc="lower left")
title("Convergence of Chebyshev derivatives");
According to Theorem 9.3.1 , the convergence of polynomial interpolation to f f f using Chebyshev nodes is spectral if f f f is analytic (at least having infinitely many derivatives) on the interval. The derivatives of f f f are also approximated with spectral accuracy.
10.3.5 Exercises ¶ (a) ✍ Calculate D x 2 \mathbf{D}_x^2 D x 2 using (10.3.5) to define D x \mathbf{D}_x D x .
(b) ⌨ Repeat the experiment of Demo 10.3.1 , but using this version of D x 2 \mathbf{D}_x^2 D x 2 to estimate f ′ ′ f'' f ′′ . What is the apparent order of accuracy in f ′ ′ f'' f ′′ ?
(a) ✍ Find the derivative of f ( x ) = sign ( x ) x 2 f(x) =\operatorname{sign}(x)x^2 f ( x ) = sign ( x ) x 2 on the interval [ − 1 , 1 ] [-1,1] [ − 1 , 1 ] . (If this gives you trouble, use an equivalent piecewise definition of f f f .) What is special about this function at x = 0 x=0 x = 0 ?
(b) ⌨ Adapt Demo 10.3.1 to operate on the function from part (a), computing only the first derivative. What is the observed order of accuracy?
(c) ✍ Show that for even values of n n n , there is only one node at which the error for computing f ′ f' f ′ in part (b) is nonzero.
⌨ To get a fourth-order accurate version of D x \mathbf{D}_x D x , five points per row are needed, including two special rows at each boundary. For a fourth-order D x x \mathbf{D}_{xx} D xx , five symmetric points per row are needed for interior rows and six points are needed for the rows near a boundary.
(a) Modify Function 10.3.1 to a function diffmat4
, which outputs fourth-order accurate differentiation matrices. You may want to use Function 5.4.1 .
(b) Repeat the experiment of Demo 10.3.1 using diffmat4
in place of Function 10.3.1 , and compare observed errors to fourth-order accuracy.
✍ Explain in detail how lines 23-24 in Function 10.3.2 correctly change the interval from [ − 1 , 1 ] [-1,1] [ − 1 , 1 ] to [ a , b ] [a,b] [ a , b ] .
(a) ✍ What is the derivative of a constant function?
(b) ✍ Explain why for any reasonable differentiation matrix D \mathbf{D} D , we should find ∑ j = 0 n D i j = 0 \displaystyle \sum_{j=0}^nD_{ij}=0 j = 0 ∑ n D ij = 0 for all i i i .
(c) ✍ What does this have to do with Function 10.3.2 ? Refer to specific line(s) in the function for your answer.
Define the ( n + 1 ) × ( n + 1 ) (n+1)\times (n+1) ( n + 1 ) × ( n + 1 ) matrix T = [ 1 1 1 ⋮ ⋱ 1 1 ⋯ 1 ] \mathbf{T} = \displaystyle \begin{bmatrix}
1 & & & \\ 1 & 1 & & \\ \vdots & & \ddots & \\ 1 & 1 & \cdots & 1
\end{bmatrix} T = ⎣ ⎡ 1 1 ⋮ 1 1 1 ⋱ ⋯ 1 ⎦ ⎤ .
(a) ✍ Write out T u \mathbf{T}\mathbf{u} Tu for a generic vector u \mathbf{u} u (start with a zero index). How is this like integration?
(b) ✍ Find the inverse of T \mathbf{T} T for any n n n . (You can use Julia to find the pattern, but show that the result is correct in general.) What does this have to do with the inverse of integration?
